KRANZLE THERM BLACK 1017 PRESSURE WASHER

KRÄNZLE THERM BLACK 1017 HOT WATER HIGH PRESSURE CLEANER

The Kränzle Therm Black 1017 hot water high pressure cleaner is a reliable and durable high pressure cleaner for everyday cleaning purposes. The Kränzle therm 1017 set new standards in this respect through proven technology, design and build quality. The Kränle Therm hot water high pressure cleaners use a diesel burner to heat the water passing through the coil. A number of technical innovations from Kränle contribute towards reliable operation, the safety of the equipment and not least towards operating and servicing.

Features and Benefits:

• Total stop system with delayed motor cut off
• Safety shutdown
• Pressure regulation
• Cleaning agent intake
• Locking brake
• Direct suction height: 2.5m.
• Water tank volume: 12 litres
• Eco mode
• Flow monitor
• Combustion chamber pre-ventilation
• Visual flame monitor
• Overheating protection (exhaust temperature in excess of 260℃)
• Burner stops when there is a lack of heating oil
• Fuel tank: 35 litres

Application Areas:

• Automotive industry and haulage firms
• Agriculture and livestock farming
• Industrial
• Construction and commercial cleaning of heavy equipment
• Sanitary food cleaning in food plants

• Operating pressure  150 bar
• Water output  16.7 l/min
• Admissable overpressure  170 bar
• Motor speed 1400 r.p.m
• Connection 400V
• Power intake 5.5KW
• Power supply cable 7.5m
• Dimensions 1050mm | 800mm | 1015mm
• Weight 193kg

TECHNICAL DATA HOT WATER

• Hot water output  12-80 ℃
• Steam level  140 ℃
• Oil consumption  6.2 kg/h
• Heating oil consumption 5.6 kg/h
• Heating outputn 68kW

• High pressure hose  10m

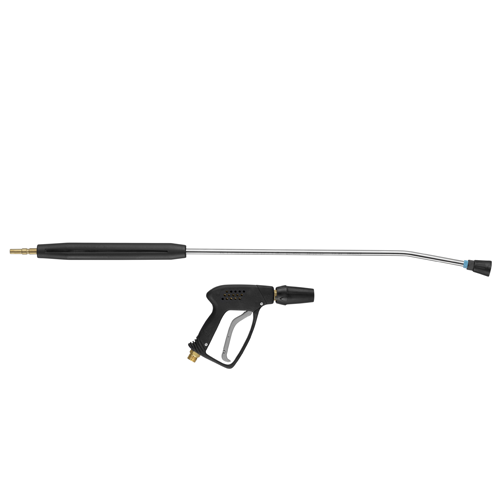

• Trigger gun with safety catch  Starlet 3 | 12500
• Stainless steel lance - flat-jet nozzle  06 nozzle
• Water inlet filter 13310
